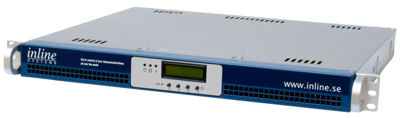

Arptel Analog Dialer

Arptel Analog dialer makes TCS supporting all common interfaces SS7, ISDN, GSM, VoIP and now also analog. It can make Voice calls, Modem calls (Speeds up to V.90) and Group 3 fax calls (Speeds up to V.34, 33.6kbps) calls to verify all type of traffic.

Worldwide telecommunications approvals.

Up to 4 concurrent calls (4 POTS lines),

Users can record the audio of a call and play the result on your normal PC speaker. This is powerful when you get inaccurate cause codes from the network and you have to listen to the call for understanding the problem.

The Dialer can be shipped with the powerful NIQA voice analysis module. It provides ITU MOS quality scale judgments (1 - 5) of normal voice call without any special reference in the far end. It will recognize network conditions and impairments due to: Low-Bit Rate Speech Codecs, Mutes, VoIP, Transcoding, Noise, Mobile Network Errors and Clipping.

Technical Specifications

INTERFACE

• 4 x RJ-10 connectors. RJ-10 to RJ-11 cables supplied
• POTS trunk interface, Loop start signaling
• Ethernet: RJ-45 10/100 autosensing, autonegotiating port

STANDARDS

• Call Types: 3.1KHz Audio, T.30 Group 3 Fax. Modem V.90
• ITU-T Rec T.4, ITU-T Rec T.30
• ITU-T V.34 G3: up to 33,600bps
• ITU-T V.17 G3: up to 14,400bps
• ITU-T V.29 G3: up to 9,600bps
• ITU-T V.27ter G3: up to 4,800bps
• ITU-T V.34 28,800~2,400bps
• ITU-T V.90 28.800bps~56k
• Ethernet version 2/IEEE 802.3/IEEE 802.3u

DIMENSIONS

• 19 inch wide, 1 unit high rack mountable
• High 44 mm (1.73") x Wide 426.5 mm (16.79”) x Deep 429 mm (16.89")
• Weight: 7,5 Kg

CONSTRUCTION/FINISH

• Type of metal: Precoated phosphate 1mm steel
• Finish: Textured paint, black

POWER SUPPLY

• Input: 115/240v VAC, autoselecting, 47 to 63 Hz

REGULATORY

• Safety: UL, CE
• Emissions Control: FCC Class B

ENVIRONMENTAL

• Operating Temperature: 10°C - 45°C ambient
• Humidity: 20%-80% non-condensing

Ordering information

IQ Dialer Analog-4A

• Item: 1604
• The dialler requires 1 - 4 POTS and a LAN connection. Equipped with 4 DSP units.
• Can perform 4 concurrent test calls with modem and fax emulations on all channels.
